ENGINEERING SUPPLIES Welding/Plasma/Gas Machines

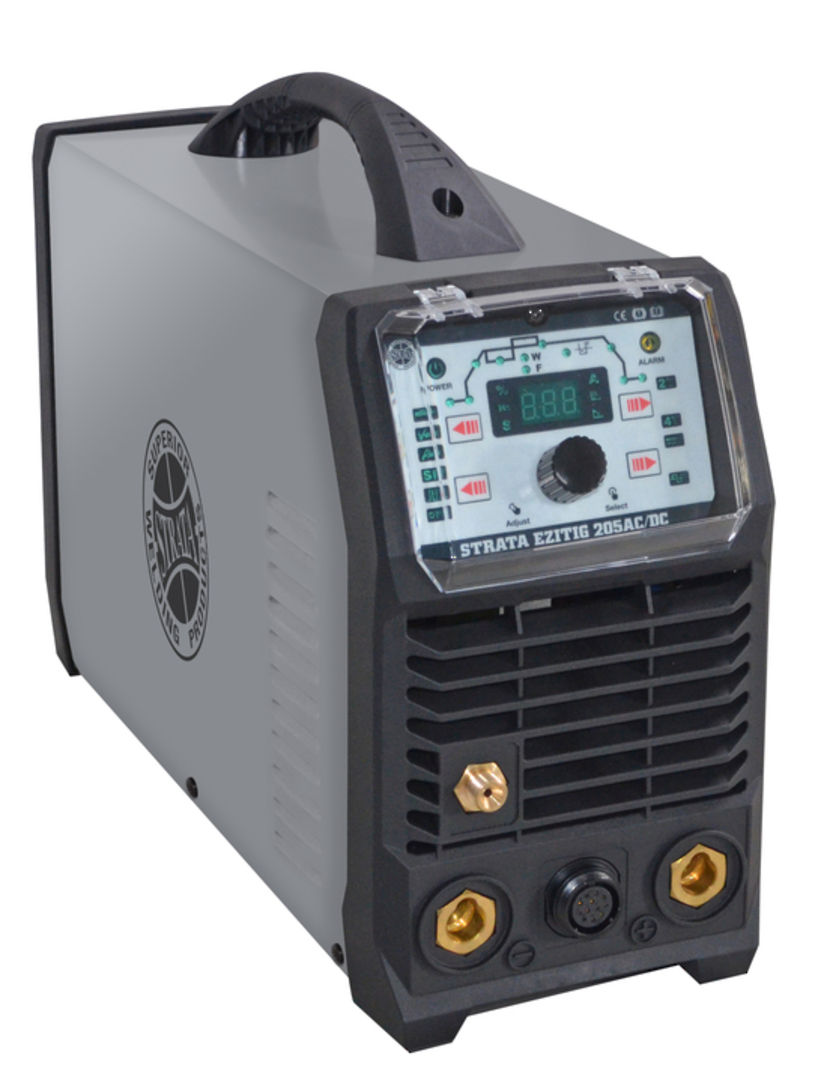

WELDER TIG AC/DC 200A INVERTER STRATA

NZ $2,952.90 excl GST
the selected product is not available.

ADVTIG205ACDC

Machines

Description

Advance Tig205ACDC - 200A AC/DC Inverter PFC TIG/MMA Welder

Featuring the latest IGBT and active PFC technology the ADVANCETIG205AC/DC is reliable, easy to use and energy efficient. Designed tough with IP23 and high quality, over specified components - this machine is made for rugged NZ workshops and onsite tasks.
Multi-voltage input - will operate with a wide range of input voltage
Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
Microprocessor control system for superior & dynamic arc characteristics
Lightweight & compact design ideal for portable applications
Extreme stress testing to 440v in production for rugged reliability.
Adjustable arc force, hot start & automatic anti stick control for greater control and ease of use for MMA welding.
Lift TIG and HF start modes for versatility when welding around sensitive electronic equipment
Electronic HF TIG arc ignition system for contamination free and easy arc starting with low EMF interference
2T/4T trigger control modes
Dual digital display meters for accurate pre setting and feedback of welding parameters & output.
Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
Multi-PCB construction is economical to service and repair compared to single PCB design
Optional wired or wireless foot control available

Dimensions

    492x189x350mm
Weight
    15kg
Input Power Supply
    230V AC 15A 50/60Hz
Input Power Supply Tolerance
    90V-275V AC
Maximum Input Current
    32A
Generator Capacity
    8KVA
MMA Current Output
    5A-200A
MMA O/C Voltage
    67V
MMA Duty Cycle
    200A@22%, 140A@60%, 110A@100%
AC/DC TIG Current Output
    5-200A
DC TIG Duty Cycle
    200A@22%, 140A@60%
AC TIG Duty Cycle
    200A@60%, 155A@100%
TIG Upslope/Down Slope Adjustment
    0-10S
TIG Gas Post Flow/Pre Flow Adjustment
    0-2/0-10S
TIG Pulse Frequency
    0.5-200Hz
TIG Pulse Width Range
    5-95%
AC TIG Waveform
    Square wave, Sine wave
AC Frequency Adjustment
    50-250Hz
Insulation Class
    IP23
Power Efficiency
    80%
Power Factor
    0.99
Standards
    EN60974-1:2012
MMA Rod Size
    1.6-5.0mm
Warranty
    Commercial 12 month extends to 36 month with product registration
Accessories
4m MMA lead with heavy duty twist lock electrode holder
3m Earth Lead with heavy duty earth clamp
Professional TIG torch
2-stage flow meter
NZ/Australia Argon Gas Regulator
4m Gas Hose
Gas inlet Quick Connector
Gas Hose Clamp x2
